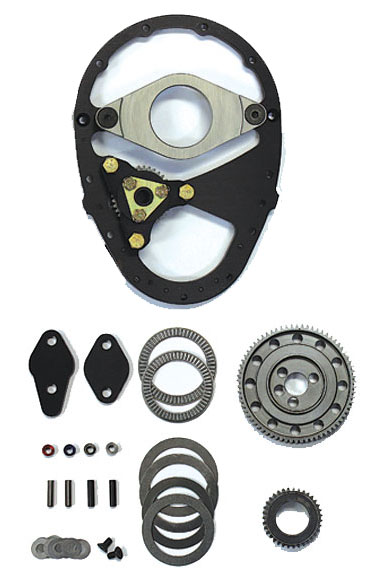

Description
1. Idler post bolts – Part # RUL-112
2. Idler post lock plate – Part # WER-124
3. Idler post – Part # SHA-111
4. Idler assembly bolts (3) Part # CH-114
5. Front idler plate – Part # WER-117
6. Crossbrace bolts – Part # CH-115
7. Idler gear snap ring – Part # ALI-115
8. Cam crossbrace – Part # WER-127
9. Idler gear – Part # SHA-110
10. Crossbrace spacer – Part # WER-128
11. Crank gear – Part # SHA-109
12. Frame – Part # WER-126
13. Pan lip seal – Part # TUC-T103
14. Rear idler plate – Part # WER-118
15. Splined insert – Part # SHA-104
16. Large thrust washers and bearing – Part # S/W-4500
17. Cam gear – Part # SHA-108
18. Small thrust washers and bearing – Part # S/W-4500
**Not pictured idler gear bearing** – Part # ALI-116
