Name: AEROFLOW CHEV SB BLOCK BORE 4.125
SKU: AEF350-4125
Availability: InStock

AEROFLOW CHEV SB BLOCK BORE 4.125

Part Number: AEF350-4125

$3,269.84

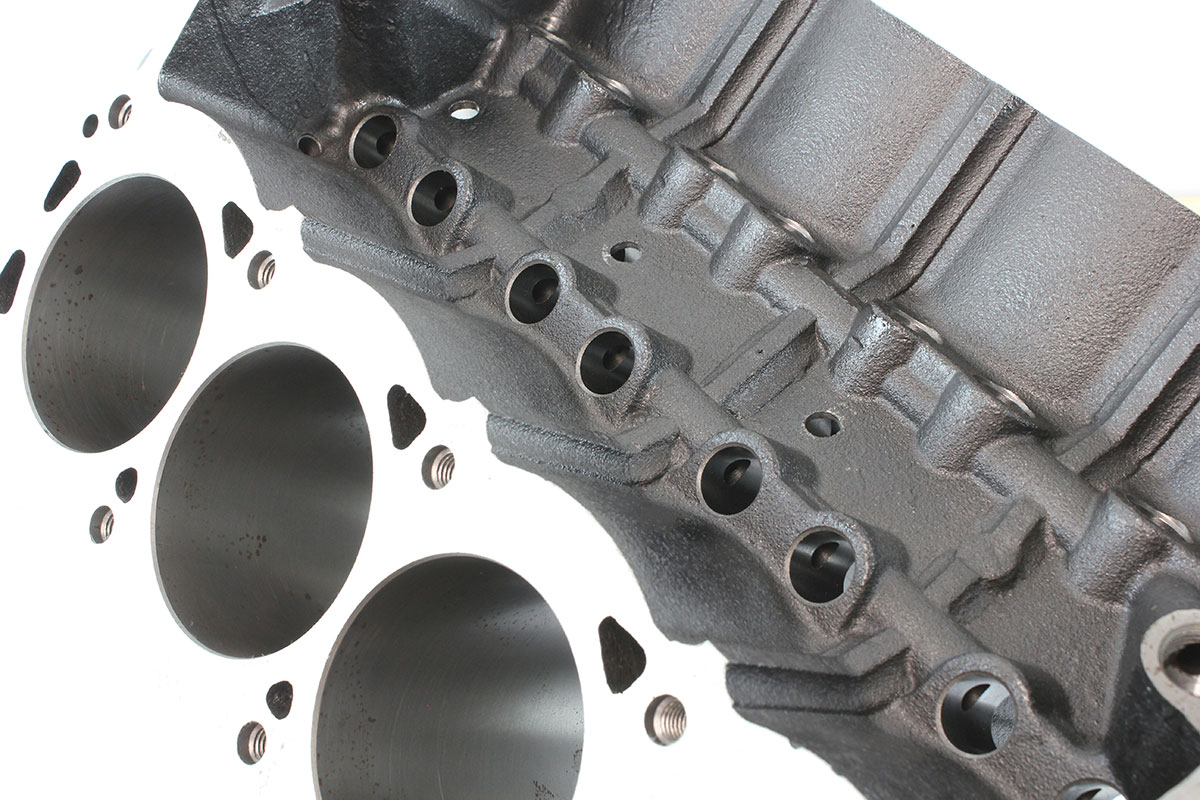

Why start your engine build with a worn-out production block from decades ago that needs hours of machine work. When you can start with a new heavy-duty cast iron engine block that is a semi-finished bare engine block that requires very little machining to match your internal components. These brand-new aftermarket engine blocks are cast from premium high-strength Class 32B iron. It features Siamese cylinder bores and splayed billet steel four-bolt main caps with priority main oiling system which direct oil straight to the main bearings. The extra thick standard deck height ensures a reliable head gasket seal as well as allowing the use of off the shelf standard components such as camshaft, timing chain, oil pump/pan and oil filter etc.

In stock

Questions about this product?

"*" indicates required fields

Description

CAST IRON BLOCK 230 LBS SPLAYED CAPS CAN BE BORED UP TO 4.185

Cylinder Bore Diameter: 4.125″
Max Bore & Stroke: 4.185″ x 4.000″
Cam Journal OD: STD, 1.869″
Cam Plug: 2.375″ Press In Cup
Cam Location: STD
Cylinder Wall Thickness: .275″. min @ 4.185″ Bore
Deck Height: 9.025″
Deck Thickness: .675″ Min
Fuel Pump: STD Mechanical Provision
Fuel Pump Pushrod: STD
Freeze Plugs: 10 x 1-5/8″ Press In Cup
Lifter Bores: .842″
Main Bearing Size: 2.450″ (350)
Main Bearing Bore: 2.649″ (350)
Main Cap Bolts: 7/16″ & 3/8″ on Caps 1 & 5, 7/16″ Splayed on Caps 2, 3 & 4
Main Caps: Billet Steel, 3 Center Caps Splayed
Main Cap Register: Deep Stepped Register (no need for dowels)
Oil System: Main Priority Oiling (can use dry sump)
Oil Pump Shaft: 350 .481″ Standard
Oil Filter: STD, Uses 2-Bolt Adapter
Oil Pan: STD 350
Rear Main Seal: STD 350 2-Piece
Serial No. Location: Left Front & Main Caps
Starter: STD
Stud Holes, Head: Blind Holes
Timing Chain / Gears: STD
Timing Cover: STD
Torque Specs: 7/16″ Bolts 65 ft. lbs., 3/8″ Bolts – 35 ft. lbs.
Weight: 92kg (205 lbs.)
